Solar Inverter single phase three phase for home use 3.5KW to 12KW
Product Details

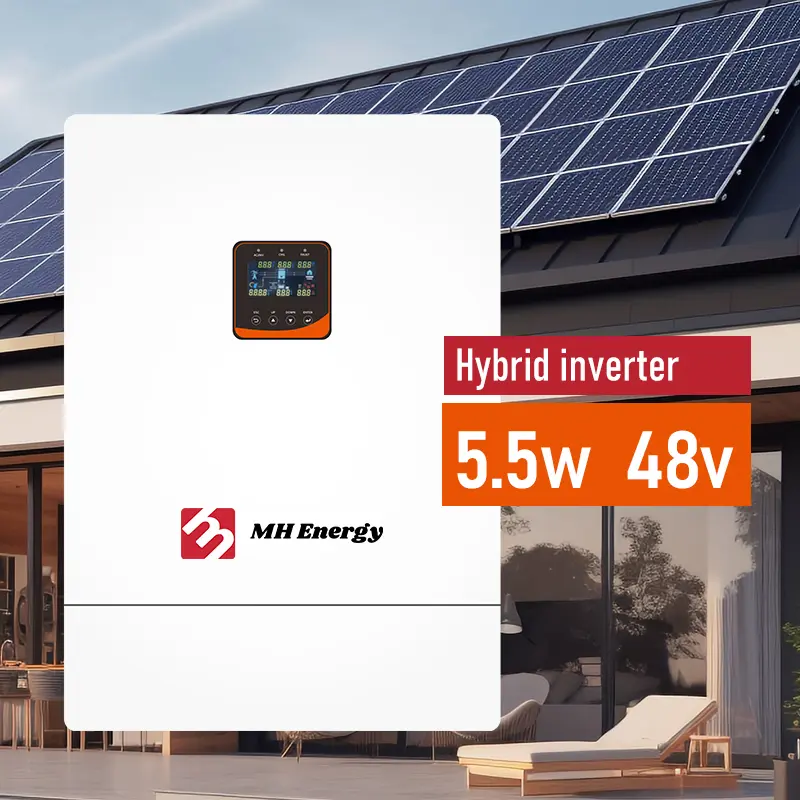

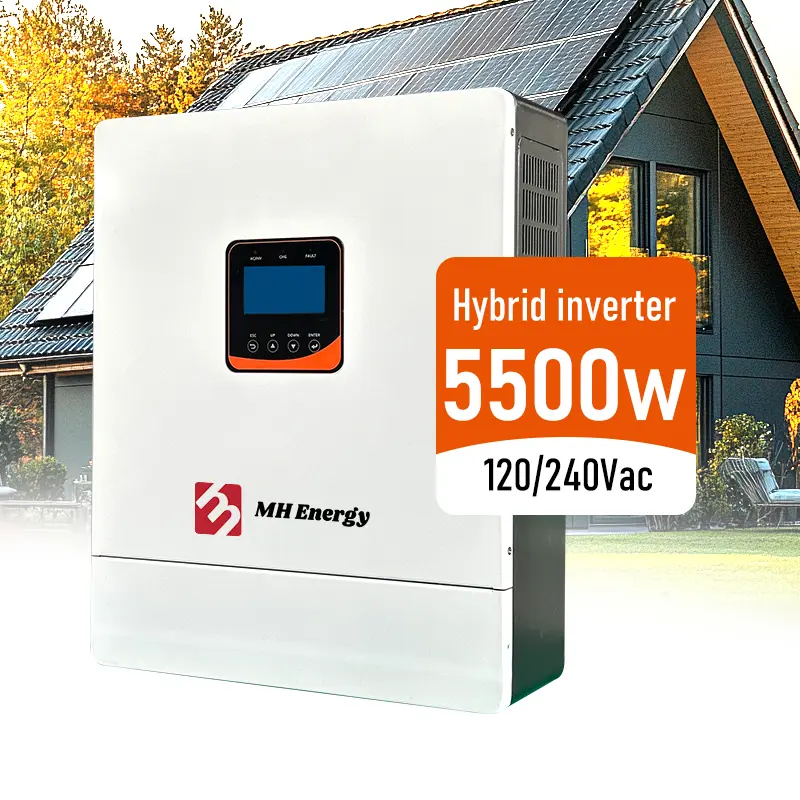

MHT series solar inverter is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, our solar inverter has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. inverter and Mains, to meet different application requirements.
Function Introduction
Three output modes of MHT Solar Inverter
When the grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set, and Inverter can also be set to off-grid output mode.
Our solar Inverter support well of The host computer and the APP cloud communication
The host computer and the APP cloud can display the operating data and status of the system in real time and control and modify the parameters.
Four charging modes of MHT Solar Inverter
Mains priority charging, solar priority charging, mains solar hybrid charging and solar only charging.
Emergency function for the home use inverter
Support battery-free output and only PV start and load, with battery activation function.
Parallel function of MHT Solar Inverter
Inverter can be flexibly combined to achieve up to 9 parallel machines, and the parallel system can output single-phase and three-phase AC voltage.
We have sound Protection function
Perfect hardware and software protection function, can display the fault type for easy removal.
Technical parameters
|
MODEL |
MHT48-3500 |
MHT48-5500 |
MHT48-10K |
|
INVERTER OUTPUT |
|||
|
Rated output power (W) |
3500 |
5500 |
10000 |
|
Rated output power (VA) |
3500 |
5500 |
10000 |
|
Maximum Peak Power (W) |
6000 |
10000 |
15000 |
|
Load Capacity with Motors |
2HP |
4HP |
6HP |
|
Rated AC Output |
230Vac（200/208/220/240VAC），50/60Hz |
||
|
Output Voltage Waveform |
Pure Sine Wave |
||
|
Inverter and Bypass Switching Time |
10ms (typical) |
||
|
Parallel Capacity |
9 channels |
||
|
Maximum Battery Inverter Efficiency |
102%<load <100%:output shut down after 5 minutes; 110%<load<125%:output shut down after 10 seconds ; load125%:output shut down after 2 seconds |
||
|
BATTERY |
|||
|
Battery Type |
Lithium/ Lead-acid / User Defined |
||
|
Rated Battery Voltage |
48Vdc |
||
|
Battery Voltage Range |
40-60Vdc |
||
|
Max.MPPT Charging Current |
60A |
100A |
200A |
|
Max.Mains Charging Current |
60A |
60A |
120A |
|
Max.Hybrid Charging Current |
80A |
100A |
200A |
|
Charging current error |
+3Adc |
||
|
Charging Short Circuit protection |
Blown Fuse |
||
|
PV CHARGING |
|||
|
MPPT Quantity |
1 |
1 |
3 |
|
Max. PV array power |
4000W |
5500W |
5500W+5500W |
|
Max. PV input current |
13A |
22A |
22A+22A |
|
Max. Open Circuit Voltage |
500Vdc |
500Vdc |
500Vdc+500Vdc |
|
MPPT Voltage Range |
70-450V |
||
|
MPPT Tracking Efficiency |
99.9% |
||
|
MAINS INPUT |
|||
|
Input Voltage Range |
90-280/170-280Vac |
||
|
Frequency Range |
50/60Hz+0.3Hz |
||
|
Output Short Circuit Protection |
Circuit breaker |
||
|
Bypass Overload Current |
30A |
40A |
63A |
|
SPECIFICATIONS |
|||
|
Dimensions (Width*Depth*Height-mm) |
350*130*455 |
350*130*455 |
445*130*630 |
|
Weight (kg) |
11 |
12 |
27 |
|
Classification of waterproof |
IP20 |
||
|
Operating Temperature Range |
-10°C~55 °C |
||
|
Storage Temperature Range |
-25°C~60°C |
||
|
Noise |
<60dB |
||
|
Heat Dissipation |
Forced air cooling (variable speed of fan) |
||
|
COMMUNICATION |
|||
|
Embedded interface |
RS485 / CAN/ USB /Dry contact |
||
|
External module |
WIFI/GPRS |
||
|
CERTIFICATION |
|||
|
Safety |
CE(IEC62109-1) |
||
|
EMC |
EN61000 |
||
|
Note: Above data are subject to change without notice. Special voltage could be customized. |
|||
